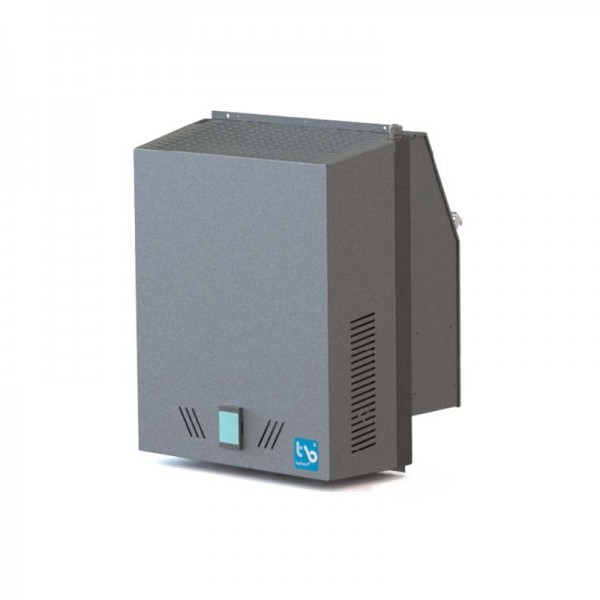

Through-The-Wall TWTA122 Monoblock Unit Capacity 101.0

Commercial Through-The-Wall Monoblock Unit For Wine Storage And Seasoning

Description, technical data and pictures must be considered as indicative and not binding.

TECHNO-B UK reserves the right to make any necessary changes at any time and without notice, for continuous product improvement.

HIGH temperature

Humidity and temperature sensors - R513A Units

CHARACTERISTICS

Painted frame.

Throug-the-wall application.

Compact condenser.

Cooling circuit complete with minimum and maximum pressure switches.

Compact evaporator, inclined suction for better air directionality, complete with evaporating battery with hydrophilic treatment and thermostatic valve expansion, complete with safety thermostat.

Automatic control of the temperature and humidity cold room with the use of post-heating heaters as standard and external humidifier (used for high U.R. - not supplied with the unit).

Condensate evaporation tray with overflow tube.

Power line cable 5 mt.

Panel with temperature and humidity probe complete with connector and cable 5 mt.

OPTIONALS

Winter Kit for ambient temperature higher

than -10°C (Crankcase heater of compressor, condenser fan pressure switch).

Winter Kit for ambient temperature higher than -20°C (Crankcase heater of compressor, condenser fan pressure switch, Heated Switchboard).

Variable condenser fan speed regualtor.

Remote controlled thermostat display.

Customized colours.

Other customized optionals on request.

Technical Data:

• Cold room temperature: +5 ÷ +20°C
• Relative humidity range: UR 40% / 80%

Model:

• Form: 2
• Coldroom Volume: 101.0
• Compressor Type: E
• Refrigerant: R513A
• Voltage V/ph/Hz: 230/1/50
• Nominal absorption to the compressor kW: 1.06
• Max. elec. absorp. during cooling kW/A: 1.82 - 8.43A
• Refrigeration capacity kW: 2.0
• Heating capacity kW: 1.75
• Cold room temperature: 14°
• Ambient temperature: 32°

CONDENSER:

• Airflow m3/h: 700
• Fans n°x Ømm: 2x230

EVAPORATOR:

• Airflow m3/h: 600
• Fans n°x Ømm: 2x230

NOISE LEVEL:

• Estimated noise level CONDENSING UNIT dB:40

10m secondo ISO 3746/79

Estimated at noise level 10m according to ISO 3746/79

Note: on request units can be supplied with wooden packing complyingwith ISPM15 regulations.

PACKAGING

• Model: TWTA122
• Form: 2
• Unit Weight: 75
• Packing (PxLxH) mm: 710 x 582 x 970
• Crate kg: 12
• Volume m3: 0.40
