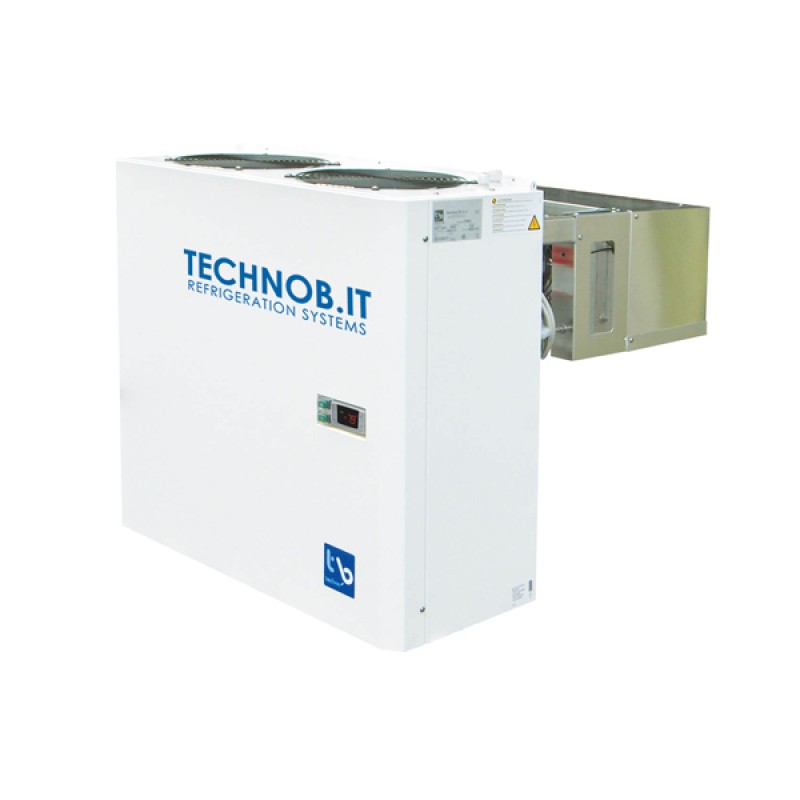

Straddle Chiller ATX120 Monoblock Unit 19.3m³
Unit Model: ATX120
Compact monoblock unit for a straddle type installation. Flexible solution suitable for several applications in small cold-rooms and at different temperature ranges.
Easy mounting for a very quick installation .
Electronic control instrument arranged to manage completely refrigerating system; compact, for easy and intuitive operation and quick programming.
High performances thanks to the components of the highest quality. Perfectly calibrated for each specific application.
Easy access to the main components for an easy maintenance of the system.
- Condensing element body in epoxy-coated steel sheets. Evaporator structure in aluminium.

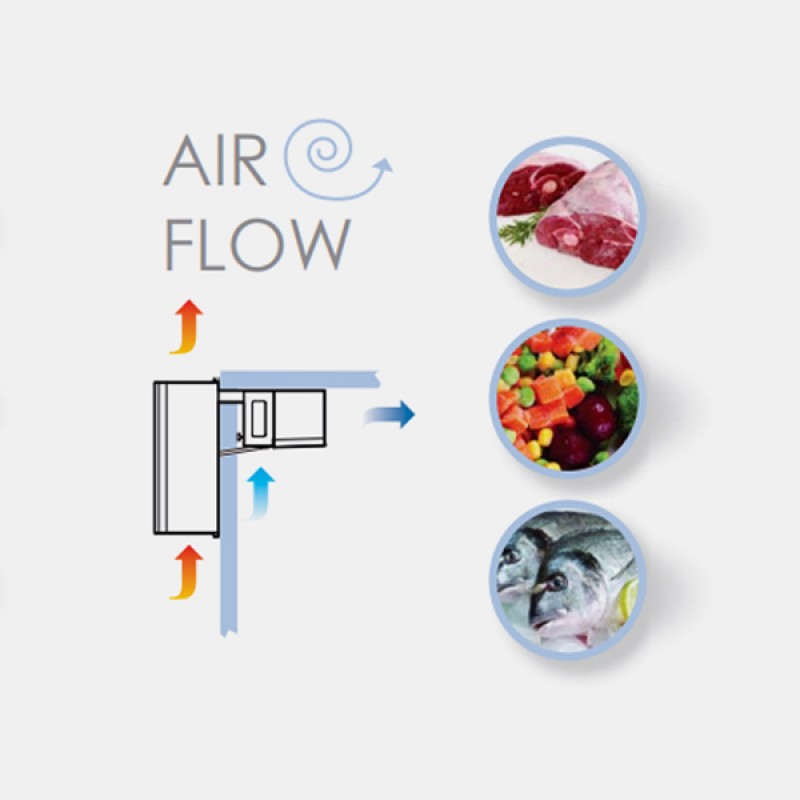

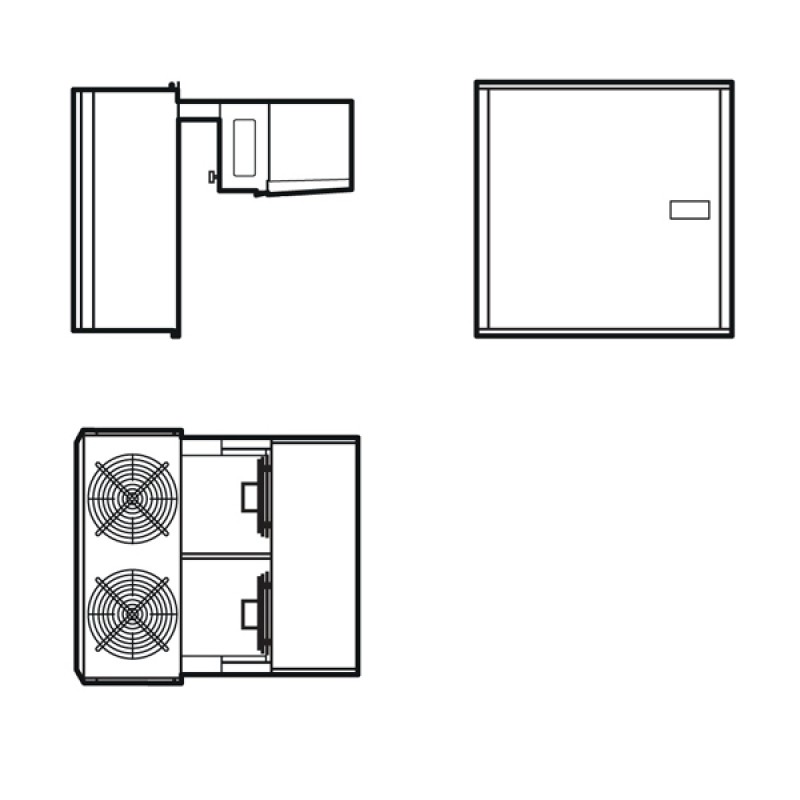

- Wall-mounted straddle-type installation.
- We recommend that the units should be employed at ambient temperature higher than 10°C. If units are mounted in Ambient temperature lower than 10°C, some accessories are needed. Furthermore, for outdoor installation, it is necessary to protect them from the bad weather.
- Electronic control instrument.
- Expansion device with capillary tube.
- Molecular sieve type filter on liquid line in the forms 1 and 2. Solid core filter type on liquid line in the forms 3, 3B.
- Room lighting.
- Cable for door heater connection on low temperature units.
- Condensate evaporation tray with safety overflow drain on all units form 1, 2, and on form 3 units but only for medium temperature models. External drainage of condensate on form 3 low temperature units and on all units forms 3B.
- Drain heater on all the units.
- All Three-phase units and the model ATX122 are equipped with a fixed calibration high pressure switch in accordance with “Pressure Equipment Directive” 97/23/EC.
- Low pressure switch on Forms 3 and 3B.
Warranty: 12 Months parts only
