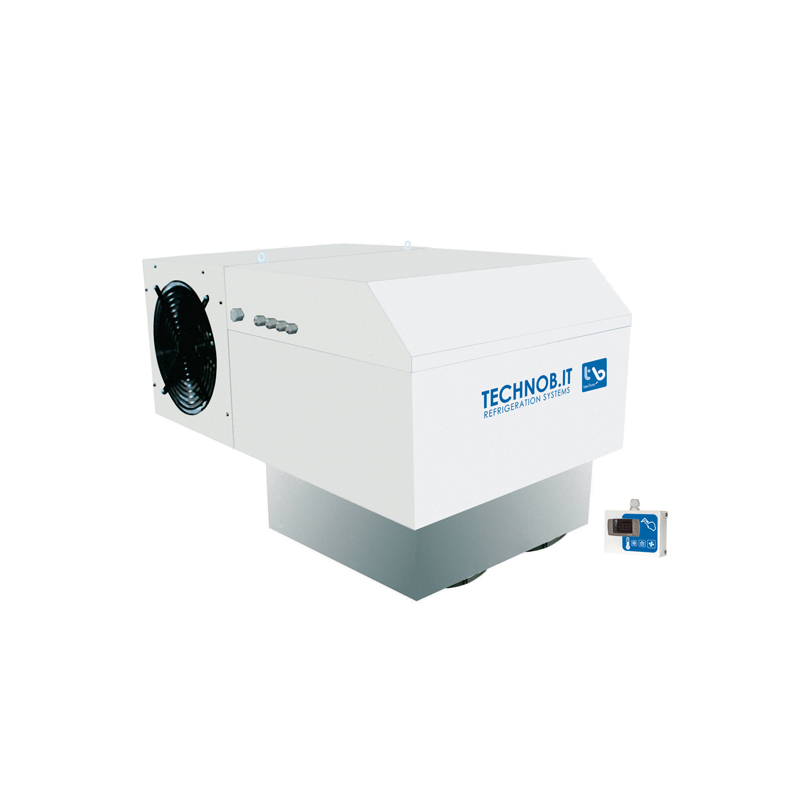

Roof Top Mount Chiller PSTX200 Monoblock Unit 44.2 m³

Description:

: 44.2

Unit Model: PSTX200

• Compact monoblock unit for a ceiling type installation. Flexible solution suitable for several applications in small cold-rooms and at different temperature ranges.
• Low-profile evaporator to save space in the cold room.
• Easy mounting for a very quick installation.
• Electronic control panel arranged to manage completely refrigerating system; compact, for an easy and intuitive use and with a fast programming. Remote control panel equipped with a light display and a user interface keyboard. Possibility of connection to a monitoring system
• High performances thanks to the components of the highest quality. Perfectly calibrated for each specific application.
• Easy access to the main components for an easy maintenance of the system

Features:

• Condensing element body in epoxy-coated steel sheets. Evaporator structure in aluminium.
• Through-the-roof-top installation.
• Units recommended for use at ambient temperatures not lower than 10°C. Suitable accessories are required for use at temperatures below 10°C. In case of outdoor installation it is necessary to protect them from the weather.
• Electronic control panel.
• Expansion devicecapillary tube.
• Solid core filter on the liquid line.
• Room lighting on all units.
• Cable for door heater connection on low temperature units.
• Condensate evaporation tray provided with safety overflow drain.
• Direct drainage of condensate.
• All units are equipped with a fixed calibration low pressure switch; all three-phase units and model PSTX122 are also provided with a fixed calibration high pressure switch. This outfit complies with the provisions of the «Pressure Equipment Directive» 97/23/EC.
• Cable for door switch connection; door switch functions can be programmed on the electronic control panel.
• Remote panelalready connected to the unit and provided with a 5 metres long cable (on request extension up to 20 metres).
